| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-022-520-112 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 22 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-022-520-112 |
337-022-520-112
| Heilind Number: | EDA337-022-520-112 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-022-520-112 |
| ECAD Model: | |
Description:

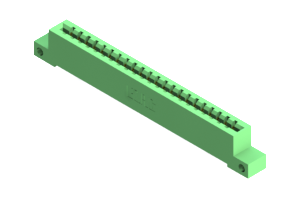

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-022-520-112, a high-performance Card Edge Connector designed for seamless board-to-board connectivity. With a vibrant green color for easy identification, this connector boasts a robust amperage rating of 3 A, making it ideal for power and signal transmission in various electronic applications. Constructed with UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable performance even in harsh environments. Featuring a single row design with 22 positions and a pitch of .156 inches, this connector offers efficient and space-saving connectivity. Its straight mount orientation and wide operating temperature range of -40 to 105 °C further enhance its versatility. Trust in the 337-022-520-112 for secure and durable card edge connections in your projects.
