| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-021-542-101 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 21 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-021-542-101 |
337-021-542-101
| Heilind Number: | EDA337-021-542-101 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-021-542-101 |
| ECAD Model: | |
Description:

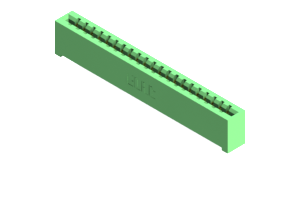

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 21 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .645" (16.38mm) long in a Single Row formation. The Insulator is Green in color with No Mounting Lugs.
More >>Specifications
Detailed Description
Introducing the 337-021-542-101, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a vibrant Green color and constructed from UL 94V-0 Thermoplastic Polyester, this connector ensures both durability and safety in operation. Featuring a single row layout with 21 positions and a contact material of Copper Alloy, it guarantees reliable and efficient power transmission with a low amperage of 3 A. The .156-inch pitch and .2-inch row spacing offer easy and precise installation, while the straight mount orientation accommodates various PCB layouts. Engineered for versatility, this connector operates flawlessly in a wide temperature range from -40 to 105 °C, making it ideal for diverse applications in the electronics industry. Trust in the 337-021-542-101 for superior connectivity performance.
