| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-021-541-102 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 21 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-021-541-102 |
337-021-541-102
| Heilind Number: | EDA337-021-541-102 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-021-541-102 |
| ECAD Model: | |
Description:

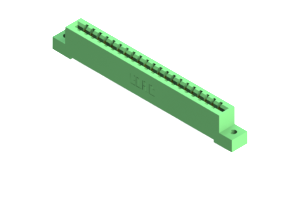

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 21 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-021-541-102 Card Edge Connector, a vital component for seamless board-to-board PCB connections in electronic systems. This green connector, constructed with high-quality UL 94V-0 Thermoplastic Polyester housing and durable copper alloy contacts, ensures reliable performance in demanding environments. With a low amperage rating of 3A and 21 positions on a single row, it offers efficient power and signal transmission. The .156-inch pitch and .2-inch row spacing allow for easy installation, while its straight mount orientation saves space on the PCB. Operating flawlessly in temperatures ranging from -40 to 105°C, this connector is perfect for a wide range of applications in various industries. Trust the 337-021-541-102 for secure and efficient board connectivity in your electronic designs.
