| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-021-520-668 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 21 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-021-520-668 |
337-021-520-668
| Heilind Number: | EDA337-021-520-668 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-021-520-668 |
| ECAD Model: | |
Description:

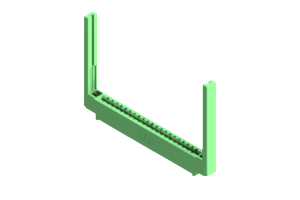

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 21 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .344" (8.74mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-021-520-668 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This green connector, featuring a single row with 21 positions, is designed for high performance in electronic applications. With a low amperage of 3A and constructed from UL 94V-0 rated thermoplastic polyester housing, it ensures safety and reliability. The contact material is made of durable copper alloy, guaranteeing secure and efficient connectivity. With a pitch of .156 inches and row spacing of .2 inches, precise alignment is achieved. Operating flawlessly in temperatures ranging from -40 to 105°C, this connector is suitable for a wide range of environments. Trust in the 337-021-520-668 for your connectivity needs.
