| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-560-858 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-560-858 |
337-020-560-858
| Heilind Number: | EDA337-020-560-858 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-560-858 |
| ECAD Model: | |
Description:

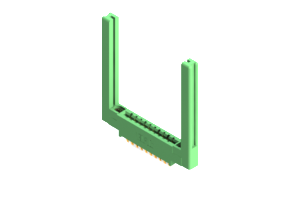

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 Extender Board Tail Bend (Contact Code 523 bent to have .375" (9.53mm) tail length) in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-020-560-858, a high-performance Card Edge Connector designed for seamless board-to-board connectivity. This green connector, constructed with UL 94V-0 Thermoplastic Polyester housing material, ensures reliable performance in various applications. Featuring two rows of copper alloy contacts, with a pitch of .156 inches and 20 positions, it allows for efficient data transmission. The straight mount orientation and wide operating temperature range of -40 to 105 °C make it suitable for diverse environments. With a current rating of 3A, this connector is ideal for demanding electronic systems. Upgrade your connectivity with the 337-020-560-858 Card Edge Connector.
