337-020-560-802

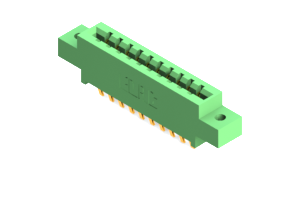

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 Extender Board Tail Bend (Contact Code 523 bent to have .375" (9.53mm) tail length) in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
The 337-020-560-802, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic systems. This green connector, featuring UL 94V-0 Thermoplastic Polyester housing, offers reliable power transmission with an amperage rating of 3 A. Its dual-row layout and 20 positions ensure secure and efficient connectivity, while the copper alloy contacts guarantee excellent signal integrity. With a pitch of .156 inches and a row spacing of .2 inches, this connector is perfect for compact PCB layouts. Operating flawlessly in a wide temperature range from -40 to 105 °C, the 337-020-560-802 is a durable and dependable solution for your connectivity needs.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-560-802 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-560-802 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
