| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-558-201 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-558-201 |
337-020-558-201
| Heilind Number: | EDA337-020-558-201 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-558-201 |
| ECAD Model: | |
Description:

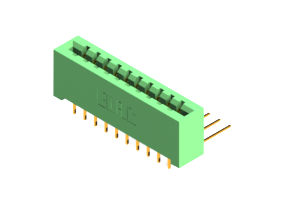

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .200" (2.54mm x 5.08mm)) in a Double Row formation. The Insulator is Green in color with No Mounting Lugs.
More >>Specifications
Detailed Description
Introducing the 337-020-558-201 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This green connector, featuring two rows and 20 positions, is designed for right-angle mounting, making it ideal for space-constrained applications. With a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it offers reliable performance in harsh environments. Rated for 3 A and operating temperatures ranging from -40 to 105 °C, this connector is suitable for a wide range of industrial and commercial applications. Please note, this product is not RoHS compliant. Upgrade your board-to-board connections with the 337-020-558-201 Card Edge Connector.
