337-020-558-158

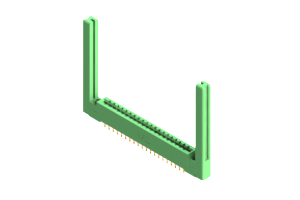

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .200" (2.54mm x 5.08mm)) in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .468" (11.89mm) Offset Card Guides.
The 337-020-558-158, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. With a vibrant Green color and a sleek Right Angle mount orientation, this connector offers both functionality and style. Engineered for durability, it features a robust housing made of UL 94V-0 Thermoplastic Polyester and Copper Alloy contacts, ensuring reliable performance in any environment. With 20 positions and a pitch of .156 inches, it provides ample connectivity for your projects. Rated for 3A and operating in a wide temperature range from -40 to 105°C, this connector is suitable for various applications. Upgrade your PCB connections with the 337-020-558-158 for efficient and secure data transmission.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-558-158 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-558-158 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
