| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-544-804 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-020-544-804 |
337-020-544-804
| ICC Number: | EDA337-020-544-804 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-544-804 |
| ECAD Model: | |
Description:

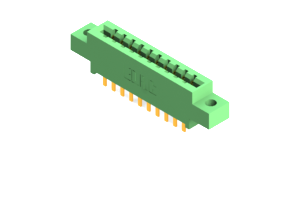

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-020-544-804, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. Featuring a durable UL 94V-0 Thermoplastic Polyester housing, this connector ensures reliable performance even in harsh environments. With two rows of 20 positions and a pitch of .156 inches, it offers ample connectivity options for your PCBs. The copper alloy contacts guarantee low contact resistance and superior conductivity. Operating efficiently in temperatures ranging from -40 to 105 °C, this green connector is a dependable choice for your projects. Whether you're working on consumer electronics or industrial machinery, the 337-020-544-804 is the perfect solution for your connectivity needs.
