| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-542-258 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-542-258 |
337-020-542-258
| Heilind Number: | EDA337-020-542-258 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-542-258 |
| ECAD Model: | |
Description:

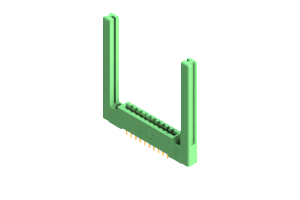

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .645" (16.38mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-020-542-258, a high-performance Card Edge Connector designed for seamless board-to-board connections. Featuring a vibrant Green color, this connector boasts a robust amperage rating of 3 A, making it ideal for power-intensive applications. Constructed from UL 94V-0 Thermoplastic Polyester housing material and Copper Alloy contacts, it ensures reliable and durable performance. With two rows and 20 positions, it offers ample connectivity options with a pitch of .156 inches. The straight mount orientation and wide operating temperature range of -40 to 105 °C further enhance its versatility. Whether for industrial or commercial use, this Card Edge Connector guarantees efficient and secure PCB connections.
