| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-540-168 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-540-168 |
337-020-540-168
| Heilind Number: | EDA337-020-540-168 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-540-168 |
| ECAD Model: | |
Description:

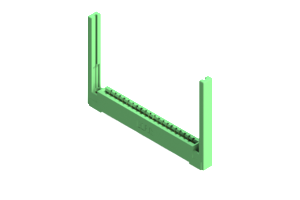

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .560" (14.22mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .344" (8.74mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-020-540-168 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. With a vibrant green color, this connector stands out while offering superior functionality. Featuring a low amperage of 3A and constructed with UL 94V-0 Thermoplastic Polyester housing material, it ensures safe and efficient operation. The single-row design with 20 positions and copper alloy contact material guarantees secure and stable connections. With a pitch of .156 inches and row spacing of .2 inches, it provides precise alignment for seamless integration. Designed for durability, this connector has an operating temperature range of -40 to 105°C. Trust in the 337-020-540-168 for your critical board-to-board connections.
