| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-540-108 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-540-108 |
337-020-540-108
| Heilind Number: | EDA337-020-540-108 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-540-108 |
| ECAD Model: | |
Description:

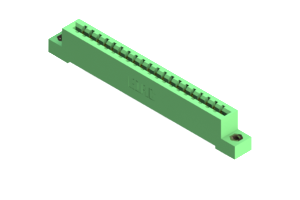

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .560" (14.22mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-020-540-108, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a vibrant Green color and a sleek UL 94V-0 Thermoplastic Polyester housing, this connector not only ensures durability but also adds a touch of style to your PCB setup. Featuring 20 positions in a single row configuration, it offers ample connectivity options. The contact material, made of Copper Alloy, guarantees excellent conductivity. With a low pitch of .156 inches and a row spacing of .2 inches, precise and secure connections are achieved. Rated for an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of environments. Whether for industrial or consumer electronics, the 337-020-540-108 is the perfect choice for reliable board-to-board connections.
