| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-524-268 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-524-268 |
337-020-524-268
| Heilind Number: | EDA337-020-524-268 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-524-268 |
| ECAD Model: | |
Description:

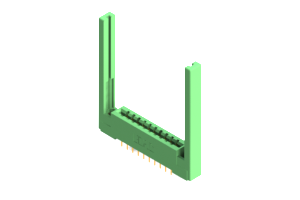

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 P.C Tail type contacts. The tails are .018"Sq' (0.46mm Sq') and .175" (4.45mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .344" (8.74mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-020-524-268 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This two-row connector features 20 positions, allowing for seamless board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures long-lasting durability, even in harsh operating environments. With a pitch of .156 inches and row spacing of .2 inches, it offers precise and secure connections. Rated for 3A of current and with an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of applications. Trust in the quality and performance of the 337-020-524-268 for your next project.
