337-020-524-168

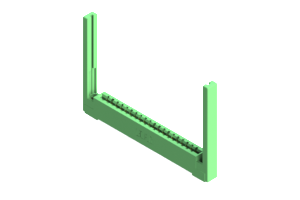

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 P.C Tail type contacts. The tails are .018"Sq' (0.46mm Sq') and .175" (4.45mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .344" (8.74mm) Offset Card Guides.
Introducing our Card Edge Connector, a vital component for seamless board-to-board PCB connections. Engineered for reliability, this connector features 20 positions in a single row with a low-profile .156-inch pitch, perfect for high-density applications. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures secure and stable connections even in harsh environments. With a current rating of 3A and an operating temperature range of -40 to 105°C, this connector guarantees optimal performance. Its straight mount orientation and green color make it easy to install and identify. Trust in the quality and durability of our Card Edge Connector for your connectivity needs.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-524-168 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-524-168 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
