| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-523-807 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-523-807 |
337-020-523-807
| Heilind Number: | EDA337-020-523-807 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-523-807 |
| ECAD Model: | |
Description:

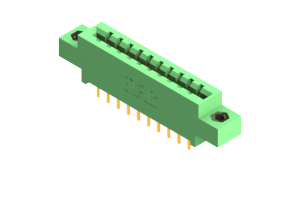

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .390" (9.91mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-020-523-807, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a sleek green housing constructed from UL 94V-0 Thermoplastic Polyester, this connector ensures both durability and safety. Featuring two rows of copper alloy contacts, each rated for 3A, it guarantees reliable power and signal transmission. The 20-position layout, with a pitch of .156 inches and row spacing of .2 inches, offers efficient connectivity in compact spaces. Engineered for versatility, it is straight mountable with an operating temperature range of -40 to 105°C, making it ideal for a wide range of applications in the electronics industry. Trust the 337-020-523-807 for superior performance in your connectivity needs.
