| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-521-158 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-521-158 |
337-020-521-158
| Heilind Number: | EDA337-020-521-158 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-521-158 |
| ECAD Model: | |
Description:

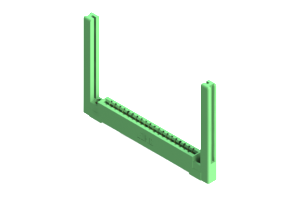

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .150" (3.81mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-020-521-158, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. Featuring a sleek Green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety in any application. With a single row design and 20 positions, it offers ample connectivity in a compact .156-inch pitch. Crafted with Copper Alloy contacts, it guarantees reliable signal transmission with a current rating of 3A. Its straight mount orientation and .2-inch row spacing make it easy to integrate into any PCB layout. Operating flawlessly in a wide temperature range from -40 to 105 °C, this connector is ideal for various industrial and commercial projects. Trust in the 337-020-521-158 for exceptional performance and longevity in your PCB assembly needs.
