| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-520-858 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-020-520-858 |
337-020-520-858
| Heilind Number: | EDA337-020-520-858 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-520-858 |
| ECAD Model: | |
Description:

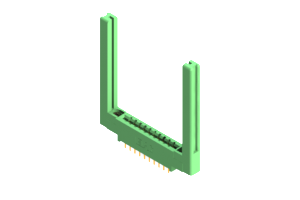

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-020-520-858, a high-performance Card Edge Connector in a sleek green housing. With a 3A amperage rating, this connector is designed for reliable power transmission. Constructed from UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures durability and conductivity. Featuring two rows and 20 positions with a pitch of .156 inches, it offers ample connectivity options. Its straight mount orientation and wide operating temperature range of -40 to 105°C make it versatile for various applications. Trust in the 337-020-520-858 for seamless board-to-board connections in your projects.
