| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-020-520-803 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 20 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-020-520-803 |
337-020-520-803
| ICC Number: | EDA337-020-520-803 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-020-520-803 |
| ECAD Model: | |
Description:

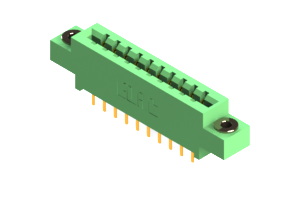

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 20 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-020-520-803, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a vibrant Green color, this connector features two rows of 20 positions, allowing for efficient data and power transmission. Constructed with durable UL 94V-0 Thermoplastic Polyester housing and Copper Alloy contacts, it guarantees reliable conductivity in a wide operating temperature range from -40 to 105 °C. With a low amperage of 3A, it is perfect for various applications in the electronics industry. The .156-inch pitch and .2-inch row spacing ensure easy installation, while the straight mount orientation offers versatility in design. Whether for consumer electronics or industrial machinery, this Card Edge Connector is the ideal solution for your board connectivity needs.
