| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-019-559-108 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 19 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-019-559-108 |
337-019-559-108
| Heilind Number: | EDA337-019-559-108 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-019-559-108 |
| ECAD Model: | |
Description:

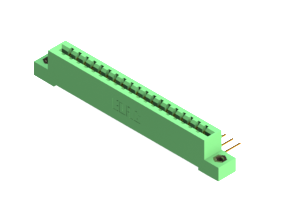

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 19 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .150" (2.54mm x 3.81mm)) in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-019-559-108, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a vibrant Green color for easy identification, this connector boasts a low amperage of 3A, making it ideal for power and signal transmissions. Crafted with durable UL 94V-0 Thermoplastic Polyester housing and Copper Alloy contacts, it ensures reliable conductivity in harsh environments. Featuring a single row layout with 19 positions and a pitch of .156 inches, it offers efficient signal routing. The right-angle mount orientation allows for flexible PCB placement, while its wide operating temperature range of -40 to 105°C ensures performance stability. Trust in the 337-019-559-108 for secure and efficient board connectivity in your electronic designs.
