| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-019-544-104 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 19 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-019-544-104 |
337-019-544-104
| Heilind Number: | EDA337-019-544-104 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-019-544-104 |
| ECAD Model: | |
Description:

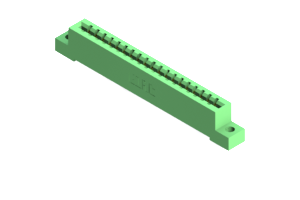

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 19 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-019-544-104, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic systems. With a vibrant Green color, this connector not only stands out visually but also offers reliable power transmission with an amperage rating of 3A. Crafted from durable UL 94V-0 Thermoplastic Polyester housing material and featuring Copper Alloy contacts, it ensures long-lasting performance even in demanding environments. Boasting a single row design, .156-inch pitch, and .2-inch row spacing, it provides efficient connectivity with 19 positions. Its straight mount orientation and wide operating temperature range of -40 to 105°C further enhance its versatility. Trust in the 337-019-544-104 for secure and efficient card edge connections in your electronic applications.
