| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-019-540-103 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 19 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-019-540-103 |
337-019-540-103
| Heilind Number: | EDA337-019-540-103 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-019-540-103 |
| ECAD Model: | |
Description:

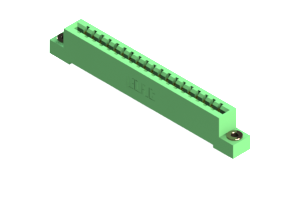

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 19 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .560" (14.22mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-019-540-103, a high-performance Card Edge Connector designed for seamless board-to-board connections. Featuring a vibrant Green color, this connector is not only visually striking but also offers superior functionality. With an amperage rating of 3 A, it ensures reliable power transmission in various applications. The housing is constructed from UL 94V-0 Thermoplastic Polyester, guaranteeing exceptional durability and safety. Boasting a single row design and 19 positions, it allows for efficient cable management. The contact material, Copper Alloy, provides excellent conductivity, while the .156-inch pitch and .2-inch row spacing offer precise connectivity. With a straight mount orientation and an operating temperature range of -40 to 105 °C, this connector is suitable for a wide range of environments. Trust in the 337-019-540-103 for all your board-to-board connection needs.
