| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-019-524-678 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 19 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-019-524-678 |
337-019-524-678
| Heilind Number: | EDA337-019-524-678 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-019-524-678 |
| ECAD Model: | |
Description:

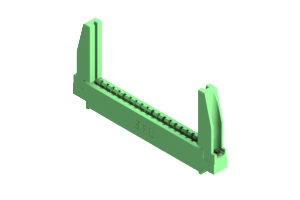

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 19 P.C Tail type contacts. The tails are .018"Sq' (0.46mm Sq') and .175" (4.45mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with In-Line Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-019-524-678, a high-performance Card Edge Connector designed for seamless board-to-board connectivity in electronic applications. With a vibrant Green color, this connector not only stands out visually but also offers reliable power transmission with an amperage rating of 3A. Crafted from durable UL 94V-0 Thermoplastic Polyester, it ensures long-lasting performance even in harsh environments. Featuring a single row design and 19 positions, it allows for efficient signal transmission. The Copper Alloy contact material guarantees excellent conductivity, while the .156-inch pitch and .2-inch row spacing accommodate precise connections. Its straight mount orientation makes installation easy, and with an operating temperature range of -40 to 105°C, it's suitable for a wide range of applications. Trust in the 337-019-524-678 for robust and dependable board-level connections.
