| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-019-520-668 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 19 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-019-520-668 |
337-019-520-668
| Heilind Number: | EDA337-019-520-668 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-019-520-668 |
| ECAD Model: | |
Description:

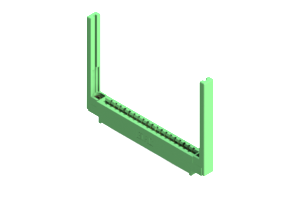

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 19 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .344" (8.74mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-019-520-668, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. This connector, featuring a vibrant green housing made of UL 94V-0 Thermoplastic Polyester, is not only visually striking but also ensures durability and safety. With a low amperage rating of 3A and copper alloy contact material, it guarantees reliable conductivity in various applications. Boasting 19 positions and a pitch of .156 inches, it offers ample connectivity options with efficient signal transmission. Its straight mount orientation and wide operating temperature range of -40 to 105°C further enhance its versatility. Ideal for use in demanding electronic systems, this Card Edge Connector is a must-have for professionals seeking top-notch performance and quality.
