| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-558-858 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-558-858 |
337-018-558-858
| Heilind Number: | EDA337-018-558-858 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-558-858 |
| ECAD Model: | |
Description:

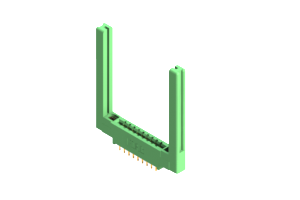

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .200" (2.54mm x 5.08mm)) in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-018-558-858, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a vibrant Green color for easy identification, this connector boasts a robust housing made of UL 94V-0 Thermoplastic Polyester, ensuring durability and safety. Featuring two rows of 18 Copper Alloy contacts, it offers reliable connectivity with a current rating of 3 A. The .156-inch pitch and .2-inch row spacing allow for precise alignment, while the Right Angle mount orientation saves space on the PCB. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is ideal for various environments. Trust in the 337-018-558-858 for efficient and secure card edge connections in your electronic designs.
