| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-558-158 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-558-158 |
337-018-558-158
| Heilind Number: | EDA337-018-558-158 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-558-158 |
| ECAD Model: | |
Description:

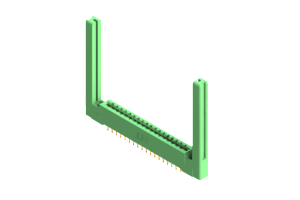

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .200" (2.54mm x 5.08mm)) in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-018-558-158, a high-performance Card Edge Connector designed for seamless board-to-board connections. This green connector features a single row with 18 positions, allowing for efficient data transfer. With a low amperage rating of 3 A, it is perfect for small electronic devices. The housing is constructed from UL 94V-0 Thermoplastic Polyester for durability, while the copper alloy contacts ensure reliable conductivity. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is ideal for a wide range of applications in the electronics industry. Upgrade your connectivity with the 337-018-558-158 Card Edge Connector.
