| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-556-802 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-556-802 |
337-018-556-802
| Heilind Number: | EDA337-018-556-802 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-556-802 |
| ECAD Model: | |
Description:

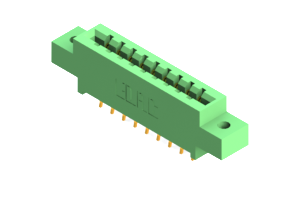

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Extender Board Tail Bend (Contact Code 520 bent to have .170" (4.32mm) tail length) in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-018-556-802, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a sleek green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety in all applications. Featuring two rows of 18 copper alloy contacts, it offers reliable conductivity and signal transmission. With a pitch of .156 inches and row spacing of .2 inches, it provides precise and secure connections. Rated for up to 3A of current and operating temperature range of -40 to 105°C, this connector is suitable for a wide range of environments. Whether you're working on consumer electronics or industrial machinery, the 337-018-556-802 is the perfect choice for your connectivity needs.
