| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-555-812 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-555-812 |
337-018-555-812
| Heilind Number: | EDA337-018-555-812 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-555-812 |
| ECAD Model: | |
Description:

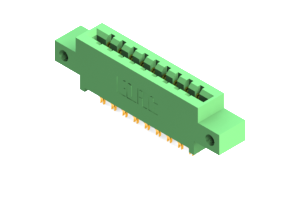

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Extender Board Tail Bend (Contact Code 500 bent to have .245" (6.22mm) tail length) in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-018-555-812, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. With a vibrant Green color, this connector stands out while offering reliable power transmission with an amperage rating of 3 A. Crafted from durable UL 94V-0 Thermoplastic Polyester housing material and featuring Copper Alloy contacts, it ensures long-lasting performance even in demanding environments. With 18 positions arranged in 2 rows and a pitch of .156 inches, it allows for secure and efficient connections. The straight mount orientation and wide operating temperature range of -40 to 105 °C further enhance its versatility. Perfect for a wide range of applications, this Card Edge Connector is a must-have for any project in need of high-quality board-to-board connectivity.
