| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-555-212 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-555-212 |
337-018-555-212
| Heilind Number: | EDA337-018-555-212 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-555-212 |
| ECAD Model: | |
Description:

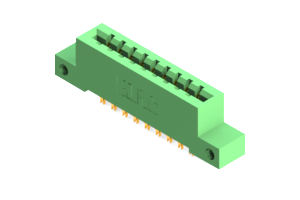

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Extender Board Tail Bend (Contact Code 500 bent to have .245" (6.22mm) tail length) in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-018-555-212 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. With a sleek green housing constructed from UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety. Featuring two rows of copper alloy contacts, each rated for 3 A of current, it offers secure and efficient power transmission. The .156-inch pitch and .2-inch row spacing, along with 18 positions, provide ample connectivity options. Designed for straight mounting orientation, it is perfect for space-constrained applications. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector guarantees reliable performance in harsh environments. Upgrade your board-to-board connections with the 337-018-555-212 for uncompromising quality.
