| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-544-807 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-544-807 |
337-018-544-807
| Heilind Number: | EDA337-018-544-807 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-544-807 |
| ECAD Model: | |
Description:

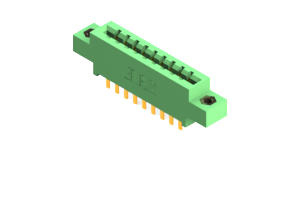

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-018-544-807, a high-performance Card Edge Connector designed for seamless board-to-board connectivity. Featuring a vibrant Green color, this connector is not only visually striking but also stands out for its durability and reliability. With a low amperage rating of 3 A, it is ideal for various electronic applications. The housing is constructed from UL 94V-0 Thermoplastic Polyester, ensuring excellent heat resistance and safety. Boasting two rows of Copper Alloy contacts with a pitch of .156 inches, it guarantees secure and efficient connections. With 18 positions and a straight mount orientation, it offers versatility in installation. Operating flawlessly in a wide temperature range from -40 to 105 °C, this connector is suitable for use in diverse environments. Whether for industrial or consumer electronics, the 337-018-544-807 is the perfect choice for high-speed data transmission and power delivery. Trust in its superior quality and performance for your connectivity needs.
