| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-544-804 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-544-804 |
337-018-544-804
| Heilind Number: | EDA337-018-544-804 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-544-804 |
| ECAD Model: | |
Description:

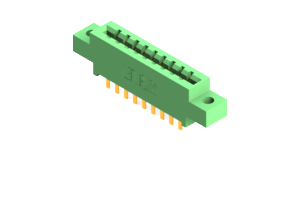

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-018-544-804, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a sleek green housing constructed from UL 94V-0 Thermoplastic Polyester, this connector ensures both durability and safety. Featuring two rows of 18 copper alloy contacts, it offers reliable conductivity with a current rating of 3 A. The .156-inch pitch and .2-inch row spacing allow for easy integration, while its straight mount orientation accommodates various PCB layouts. Engineered for versatility, this connector operates flawlessly in temperatures ranging from -40 to 105 °C, making it ideal for a wide range of environments. Upgrade your connectivity solutions with the 337-018-544-804 Card Edge Connector.
