| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-544-608 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-544-608 |
337-018-544-608
| Heilind Number: | EDA337-018-544-608 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-544-608 |
| ECAD Model: | |
Description:

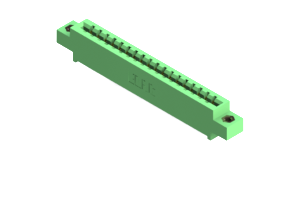

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with #4-40 Unified Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-018-544-608, a high-quality Card Edge Connector designed for seamless board-to-board PCB connections. This green connector features a single row design with 18 positions, perfect for various electronic applications. With a low amperage rating of 3A, it ensures efficient power transfer while maintaining safety. The housing is constructed from UL 94V-0 Thermoplastic Polyester, offering excellent durability and heat resistance. Each contact is made from robust Copper Alloy, guaranteeing reliable conductivity. With a pitch of .156 inches and row spacing of .2 inches, precise and secure connections are ensured. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is suitable for a wide range of environments. Upgrade your electronic systems with the 337-018-544-608 for dependable performance.
