| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-541-678 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-541-678 |
337-018-541-678
| Heilind Number: | EDA337-018-541-678 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-541-678 |
| ECAD Model: | |
Description:

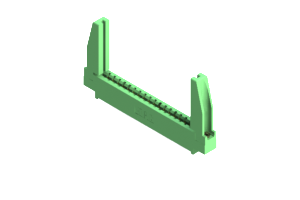

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with In-Line Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-018-541-678, a high-performance Card Edge Connector designed for seamless board-to-board connections. This green connector boasts a durable UL 94V-0 Thermoplastic Polyester housing, ensuring reliable performance even in harsh operating conditions ranging from -40 to 105 °C. With a low amperage of 3 A and copper alloy contact material, it guarantees efficient power transmission. Featuring a single row layout with 18 positions and a pitch of .156 inches, it offers precise and secure connectivity. Its straight mount orientation and .2-inch row spacing make installation a breeze. Whether for industrial or commercial applications, this Card Edge Connector is a dependable solution for your PCB connectivity needs.
