| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-541-108 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-541-108 |
337-018-541-108
| Heilind Number: | EDA337-018-541-108 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-541-108 |
| ECAD Model: | |
Description:

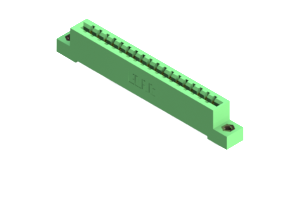

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-018-541-108, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic devices. Featuring a vibrant Green color, this connector is not only visually striking but also stands out for its durability and reliability. With an amperage rating of 3 A, it ensures efficient power transmission, while its housing material, UL 94V-0 Thermoplastic Polyester, guarantees safety and peace of mind. Boasting a single row design with 18 positions, it offers ample connectivity options. The contact material, Copper Alloy, and a pitch of .156 inches, ensure secure and stable connections. With a straight mount orientation and an operating temperature range of -40 to 105 °C, this connector is suitable for a wide range of applications. Upgrade your PCB connectivity with the 337-018-541-108 Card Edge Connector.
