| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-540-207 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-540-207 |
337-018-540-207
| Heilind Number: | EDA337-018-540-207 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-540-207 |
| ECAD Model: | |
Description:

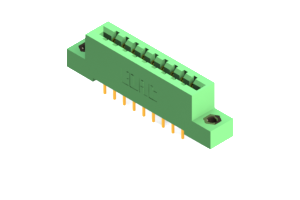

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .560" (14.22mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-018-540-207, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a vibrant Green color, this connector not only stands out visually but also offers superior functionality. Boasting a low amperage of 3A, it is ideal for various electronic applications. The housing is constructed from UL 94V-0 Thermoplastic Polyester, ensuring durability and safety. Featuring two rows of Copper Alloy contacts with a pitch of .156 inches, this connector guarantees reliable connectivity. With 18 positions, it accommodates multiple connections with ease. Its straight mount orientation and wide operating temperature range of -40 to 105°C make it suitable for diverse environments. Upgrade your PCB connections with the 337-018-540-207 Card Edge Connector.
