| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-524-268 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-524-268 |
337-018-524-268
| Heilind Number: | EDA337-018-524-268 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-524-268 |
| ECAD Model: | |
Description:

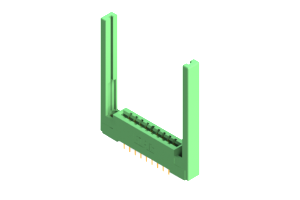

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 P.C Tail type contacts. The tails are .018"Sq' (0.46mm Sq') and .175" (4.45mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .344" (8.74mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-018-524-268, a high-performance Card Edge Connector designed for seamless board-to-board connectivity in electronic applications. This green connector features two rows of 18 positions, with a pitch of .156 inches and row spacing of .2 inches, ensuring efficient signal transmission. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it offers reliable performance in harsh environments. With an amperage rating of 3A and an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of industrial and commercial applications. Its straight mount orientation and compact design make it easy to integrate into your PCB layout. Trust in the 337-018-524-268 for secure and dependable board-level connections.
