| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-521-207 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-521-207 |
337-018-521-207
| Heilind Number: | EDA337-018-521-207 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-521-207 |
| ECAD Model: | |
Description:

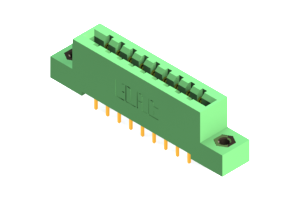

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .150" (3.81mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing our Card Edge Connector, featuring a sleek green design that adds a pop of color to your circuit boards. With a low amperage of 3 A, this connector is perfect for various electronic applications. Crafted from durable UL 94V-0 Thermoplastic Polyester housing material and copper alloy contacts, it ensures reliable performance. Boasting two rows and 18 positions, it offers ample connectivity options. The .156-inch pitch and .2-inch row spacing make for easy installation. Designed for straight mounting orientation, it fits seamlessly onto your PCBs. Operating efficiently in temperatures ranging from -40 to 105 °C, this connector is a dependable solution for your board-to-board connections.
