| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-520-207 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 18 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-018-520-207 |
337-018-520-207
| ICC Number: | EDA337-018-520-207 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-520-207 |
| ECAD Model: | |
Description:

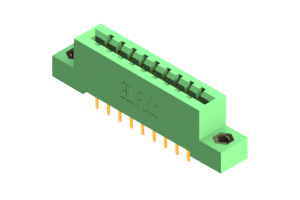

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-018-520-207, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a sleek green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures both durability and safety. Featuring two rows of 18 positions each, it provides ample connectivity options with a pitch of .156 inches and row spacing of .2 inches. Crafted with copper alloy contacts, it guarantees reliable signal transmission with a current rating of 3A. Its straight mount orientation offers easy installation, while its wide operating temperature range of -40 to 105°C ensures optimal performance even in harsh environments. Trust in the 337-018-520-207 for efficient and secure card edge connections in your PCB designs.
