| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-500-812 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 18 |
| Termination Method: | Wire Hole |
| Insulation Material: | Diallyl Phthalate |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-018-500-812 |
337-018-500-812
| ICC Number: | EDA337-018-500-812 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-500-812 |
| ECAD Model: | |
Description:

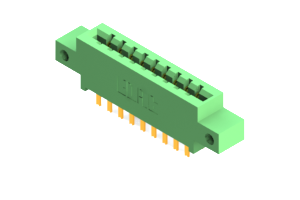

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Wire Hole type contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .260" (6.60mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-018-500-812, a high-performance Card Edge Connector designed for seamless board-to-board connectivity in electronic applications. This two-row connector features 18 positions, each capable of accommodating a 3A current, ensuring efficient power transmission. Crafted from durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it guarantees reliable performance even in harsh environments. With a pitch of .156 inches and a row spacing of .2 inches, this connector offers precise and secure mating. Its straight mount orientation and wide operating temperature range of -40 to 105°C further enhance its versatility. Trust in the 337-018-500-812 for robust and dependable connectivity in your PCB designs.
