| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-018-500-158 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 18 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-018-500-158 |
337-018-500-158
| Heilind Number: | EDA337-018-500-158 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-018-500-158 |
| ECAD Model: | |
Description:

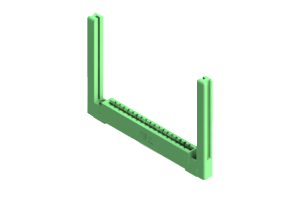

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 18 Wire Hole type contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .260" (6.60mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-018-500-158, a high-performance Card Edge Connector designed for seamless board-to-board connections. Constructed with durable UL 94V-0 Thermoplastic Polyester housing and featuring Copper Alloy contacts, this connector ensures reliable power and signal transmission in a variety of applications. With a compact single-row design, it boasts 18 positions and a low-profile .156-inch pitch, perfect for space-constrained PCB layouts. Operating flawlessly in temperatures ranging from -40 to 105 °C, it offers robust performance in harsh environments. Whether for industrial machinery or telecommunications equipment, the 337-018-500-158 is the ideal choice for secure and efficient connectivity.
