| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-017-559-101 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 17 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-017-559-101 |
337-017-559-101
| Heilind Number: | EDA337-017-559-101 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-017-559-101 |
| ECAD Model: | |
Description:

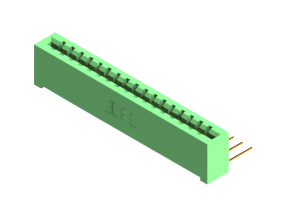

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 17 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .150" (2.54mm x 3.81mm)) in a Single Row formation. The Insulator is Green in color with No Mounting Lugs.
More >>Specifications
Detailed Description
Introducing our Card Edge Connector, SKU 337-017-559-101. This essential component features a sleek green design, perfect for seamless integration into your PCB setup. With a low amperage of 3A, it offers reliable power connectivity. Crafted from durable UL 94V-0 Thermoplastic Polyester, its housing ensures safety and longevity. Boasting a single row layout with 17 positions, along with copper alloy contacts, this connector guarantees efficient signal transmission. Its .156-inch pitch and .2-inch row spacing, combined with a convenient right-angle mount orientation, provide versatility in installation. Operating flawlessly in temperatures ranging from -40 to 105°C, this connector is a dependable choice for your high-performance electronic applications.
