| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-017-540-668 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 17 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-017-540-668 |
337-017-540-668
| Heilind Number: | EDA337-017-540-668 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-017-540-668 |
| ECAD Model: | |
Description:

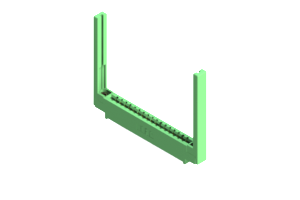

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 17 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .560" (14.22mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .344" (8.74mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-017-540-668, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a vibrant Green color for easy identification, this connector boasts a durable housing made of UL 94V-0 Thermoplastic Polyester, ensuring reliable performance even in harsh environments. Featuring a single row design, Copper Alloy contacts, and a pitch of .156 inches, it offers precise and secure connectivity. With 17 positions and a current rating of 3A, it is perfect for various power and signal transmission needs. Its straight mount orientation and wide operating temperature range of -40 to 105 °C make it versatile for use in different systems. Trust in the 337-017-540-668 for efficient and dependable board-level connections in your electronic designs.
