| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-017-540-604 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 17 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-017-540-604 |
337-017-540-604
| Heilind Number: | EDA337-017-540-604 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-017-540-604 |
| ECAD Model: | |
Description:

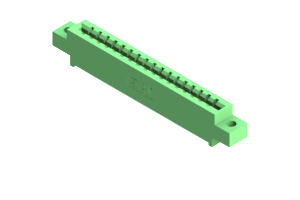

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 17 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .560" (14.22mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-017-540-604, a high-performance Card Edge Connector designed for seamless board-to-board connections. Featuring a vibrant Green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and reliability in any application. With a low amperage rating of 3 A, it is perfect for various electronic devices. The 17 positions, arranged in a single row with a pitch of .156 inches, allow for efficient signal transmission. Crafted from Copper Alloy, the contacts guarantee excellent conductivity. With a wide operating temperature range of -40 to 105 °C, this connector is suitable for use in diverse environments. Perfect for PCB assemblies, this Card Edge Connector is a must-have for any electronics project.
