| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-017-523-658 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 17 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-017-523-658 |
337-017-523-658
| Heilind Number: | EDA337-017-523-658 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-017-523-658 |
| ECAD Model: | |
Description:

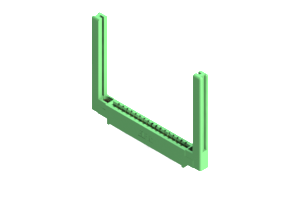

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 17 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .390" (9.91mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-017-523-658, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. This green connector features a single row design with 17 positions, allowing for efficient data and power transmission. With a low amperage rating of 3A and constructed from durable UL 94V-0 Thermoplastic Polyester housing material, it ensures reliable performance even in harsh environments. The copper alloy contact material and .156-inch pitch guarantee secure and stable connections, while the .2-inch row spacing accommodates varying PCB layouts. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is ideal for a wide range of applications in the electronics industry. Trust in the 337-017-523-658 for all your board-to-board connectivity needs.
