| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-017-520-658 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 17 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-017-520-658 |
337-017-520-658
| Heilind Number: | EDA337-017-520-658 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-017-520-658 |
| ECAD Model: | |
Description:

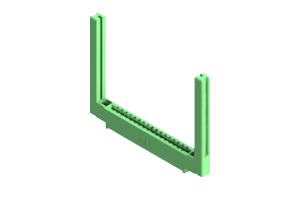

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 17 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-017-520-658, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a sleek green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety in any application. Boasting a current rating of 3 A, it offers reliable power transmission. The 17-position layout, featuring copper alloy contacts, guarantees efficient signal transfer with minimal interference. With a pitch of .156 inches and a row spacing of .2 inches, this connector is perfect for high-density PCB layouts. Its straight mount orientation and wide operating temperature range of -40 to 105°C further enhance its versatility. Trust in the 337-017-520-658 for your connectivity needs.
