| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-017-520-612 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 17 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-017-520-612 |
337-017-520-612
| Heilind Number: | EDA337-017-520-612 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-017-520-612 |
| ECAD Model: | |
Description:

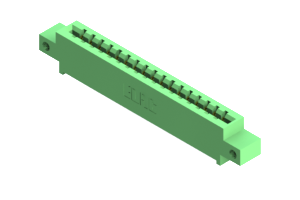

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 17 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-017-520-612, a high-performance Card Edge Connector designed for seamless board-to-board connectivity. Boasting a vibrant Green color, this connector features a single row with 17 positions, offering ample room for your electronic components. With a low amperage rating of 3A, it is perfect for a wide range of applications. Crafted from durable UL 94V-0 Thermoplastic Polyester, and with copper alloy contacts, this connector ensures reliable performance even in harsh environments. The .156-inch pitch and .2-inch row spacing allow for easy installation, while its straight mount orientation offers flexibility in placement. Operating flawlessly in temperatures ranging from -40 to 105 °C, the 337-017-520-612 is a must-have for any project requiring high-quality card edge connectivity.
