| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-016-559-603 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 16 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-016-559-603 |
337-016-559-603
| Heilind Number: | EDA337-016-559-603 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-016-559-603 |
| ECAD Model: | |
Description:

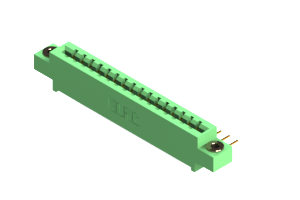

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 16 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .150" (2.54mm x 3.81mm)) in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing our Green Card Edge Connector, featuring a durable UL 94V-0 Thermoplastic Polyester housing for reliable performance. With one row of 16 copper alloy contacts, this connector offers a secure and efficient connection for your PCBs. The .156-inch pitch and .2-inch row spacing allow for easy integration, while the right-angle mount orientation saves space in your design. Operating in a wide temperature range from -40 to 105 °C, this connector is suitable for a variety of environments. Whether for consumer electronics or industrial applications, trust in the quality and performance of our Card Edge Connector.
