| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-016-559-158 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 16 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-016-559-158 |
337-016-559-158
| Heilind Number: | EDA337-016-559-158 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-016-559-158 |
| ECAD Model: | |
Description:

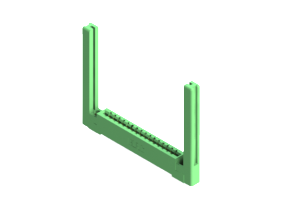

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 16 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .150" (2.54mm x 3.81mm)) in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-016-559-158, a high-performance Card Edge Connector designed for seamless board-to-board connectivity. With a sleek green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety in any application. Featuring a single row of 16 copper alloy contacts, with a pitch of .156 inches and row spacing of .2 inches, it guarantees reliable power and signal transmission. Operating flawlessly in extreme temperatures ranging from -40 to 105°C, it's perfect for a wide range of industrial and commercial environments. With a current rating of 3A, this connector is ideal for high-power applications. Its right-angle mount orientation offers flexibility in installation, while its compact design saves valuable board space. Trust the 337-016-559-158 for efficient and secure board-to-board connections in your projects.
