| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-016-556-203 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 16 |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 16 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-016-556-203 |
337-016-556-203
| ICC Number: | EDA337-016-556-203 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-016-556-203 |
| ECAD Model: | |
Description:

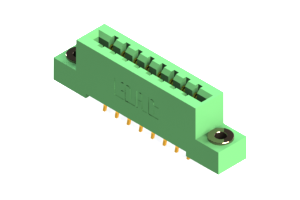

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 16 Extender Board Tail Bend (Contact Code 520 bent to have .170" (4.32mm) tail length) in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-016-556-203 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This green connector, constructed with high-quality UL 94V-0 Thermoplastic Polyester housing and durable copper alloy contacts, ensures reliable performance in demanding environments. With two rows and 16 positions, it offers ample connectivity for your electronic devices. The .156-inch pitch and .2-inch row spacing, along with a straight mount orientation, facilitate easy and secure installations. Rated for an operating temperature range of -40 to 105°C, this connector guarantees stable functionality even in harsh conditions. Trust in the 337-016-556-203 for efficient and dependable card edge connections in your electronic designs.
