| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-016-542-208 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 16 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-016-542-208 |
337-016-542-208
| Heilind Number: | EDA337-016-542-208 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-016-542-208 |
| ECAD Model: | |
Description:

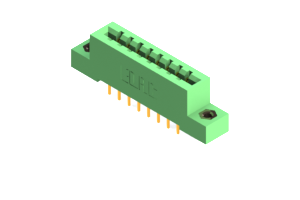

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 16 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .645" (16.38mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-016-542-208, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic systems. With a vibrant Green color and constructed from durable UL 94V-0 Thermoplastic Polyester, this connector ensures reliable power and signal transmission. Featuring two rows of Copper Alloy contacts with a pitch of .156 inches, it accommodates up to 16 positions for versatile connectivity. Its straight mount orientation and wide operating temperature range of -40 to 105°C make it suitable for various applications. Trust in the 337-016-542-208 for efficient and secure interboard connections in your projects.
