| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-016-541-212 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 16 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-016-541-212 |
337-016-541-212
| Heilind Number: | EDA337-016-541-212 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-016-541-212 |
| ECAD Model: | |
Description:

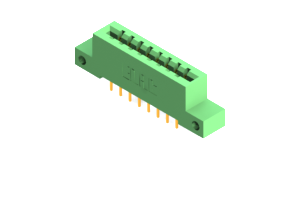

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 16 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .750" (19.05mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-016-541-212, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. This connector features a durable UL 94V-0 Thermoplastic Polyester housing and is constructed with reliable Copper Alloy contacts, ensuring a secure and stable connection. With two rows and 16 positions, it offers ample connectivity options. The .156-inch pitch and .2-inch row spacing allow for easy installation. Rated for an operating temperature range of -40 to 105 °C, this connector is suitable for use in a wide range of environments. Whether for consumer electronics or industrial systems, the 337-016-541-212 is the perfect choice for your connectivity needs.
